Valve Lockouts
A valve lockout stops a valve being opened or closed while someone is working downstream of it. Closing a valve is not an isolation — a handwheel anyone can reach is a handwheel somebody eventually turns, usually because the job looked finished from where they were standing.
Size on the valve, not the pipe
This is where most orders go wrong. A lockout fits the handwheel or handle, not the bore. A 50 mm pipe can carry a 160 mm handwheel. Measure the thing you are locking on to, before you order.
Gate valves — measure the handwheel diameter

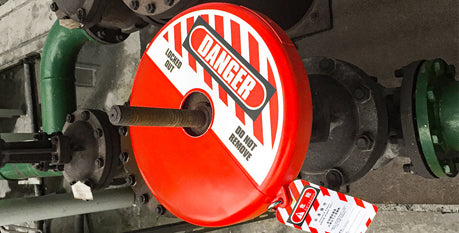

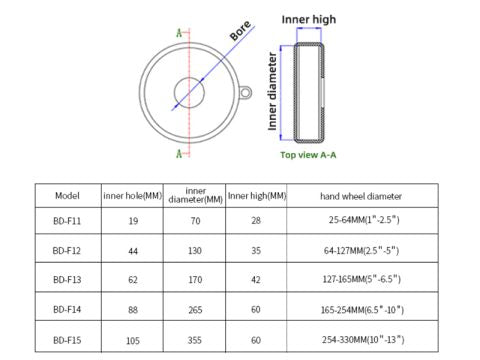

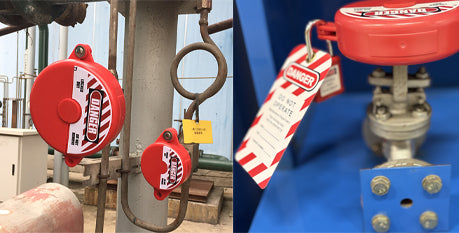

Two halves close over the wheel so it cannot be turned, and lock together for a padlock. Sized straight off the wheel:
- 25 – 64 mm (1″ – 2.5″)
- 64 – 127 mm (2.5″ – 5″)
- 127 – 165 mm (5″ – 6.5″)
- 165 – 254 mm (6.5″ – 10″)
- 254 – 330 mm (10″ – 13″)

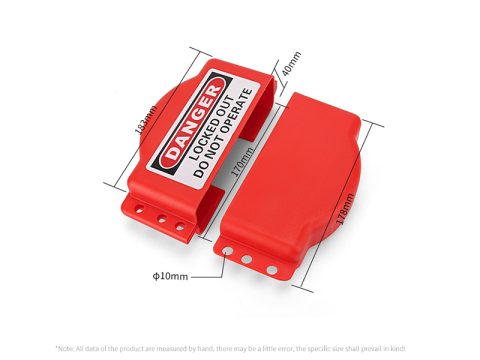

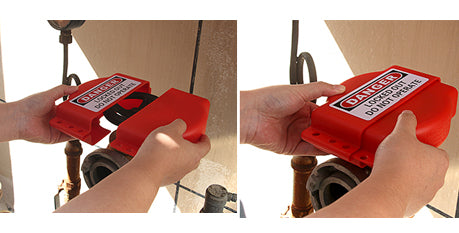

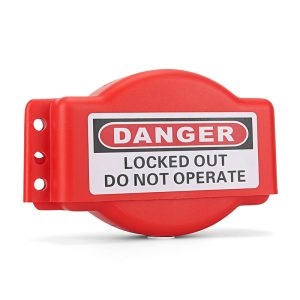

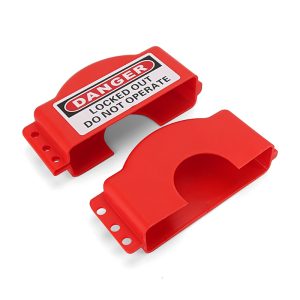

Mixed sizes across a site? The adjustable gate valve lockout covers 25 to 162 mm in one device, so the van carries one instead of five. Below about 160 mm it is usually the cheaper answer.
Ball valves — lever handle, so measure the handle
A ball valve turns 90°, which means the lockout has to hold a lever rather than enclose a wheel. Two approaches:

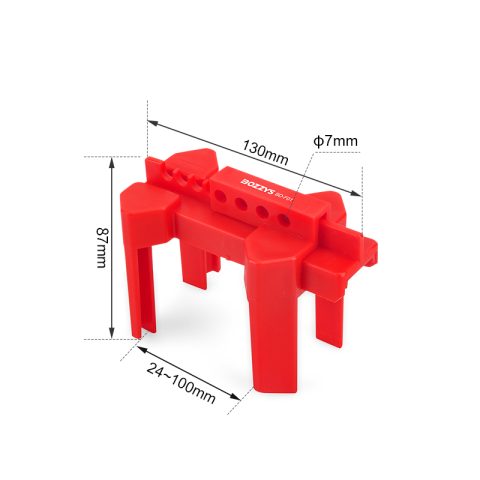

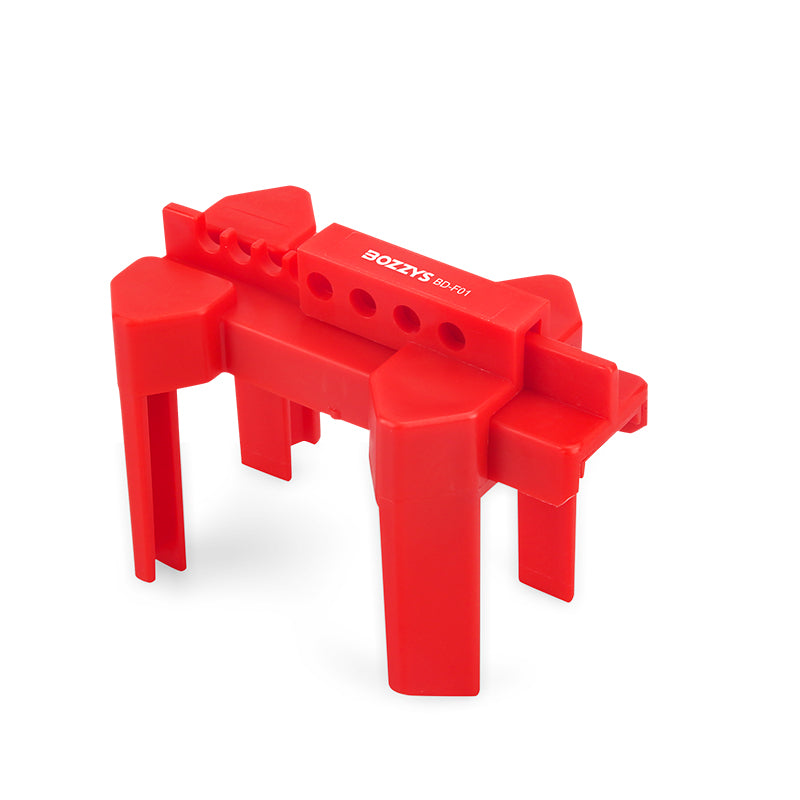

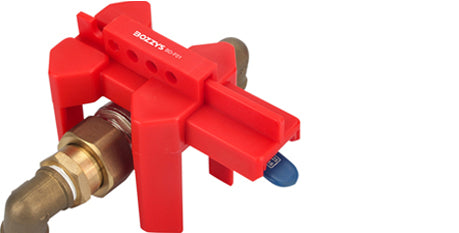

- Clamp over the handle. The adjustable devices clamp on and take up to four padlocks — 13 – 64 mm and 50 – 200 mm. Moulded polypropylene with a removable insert to suit different handle shapes.

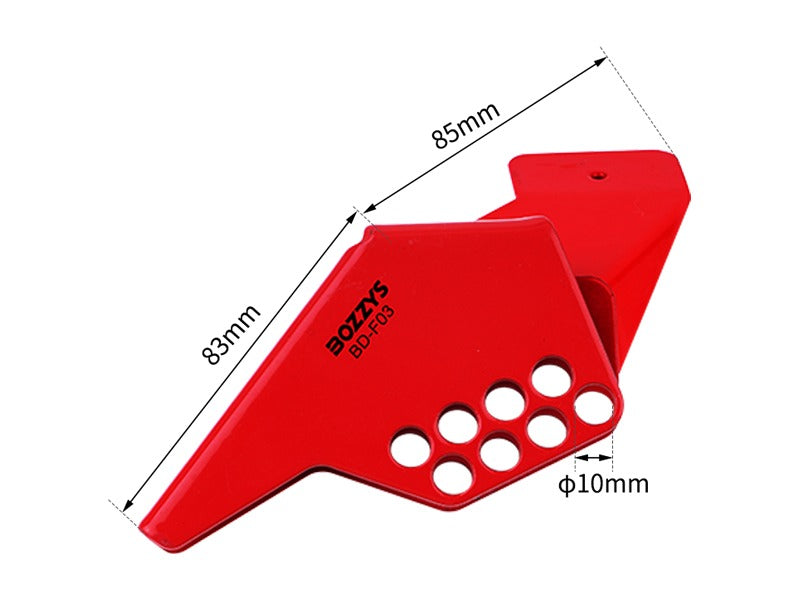

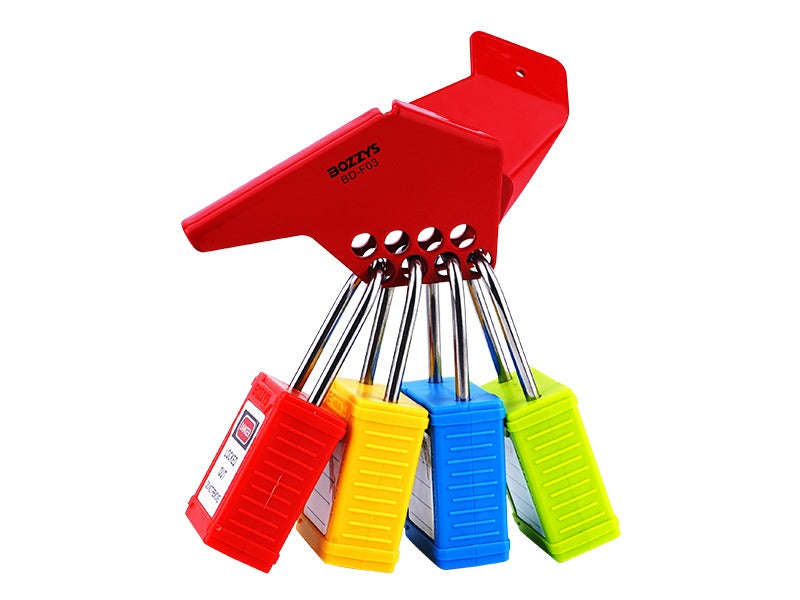

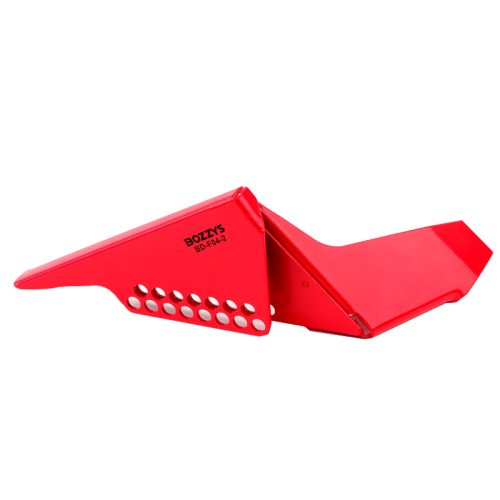

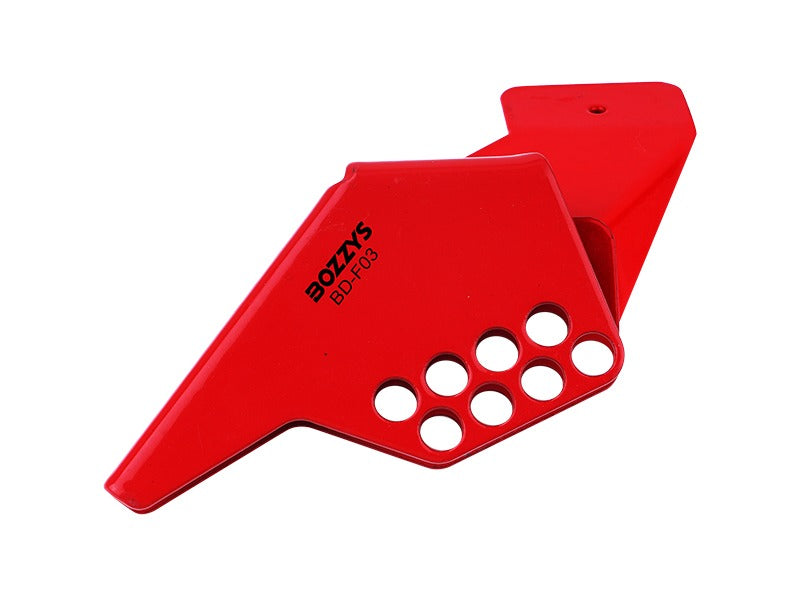

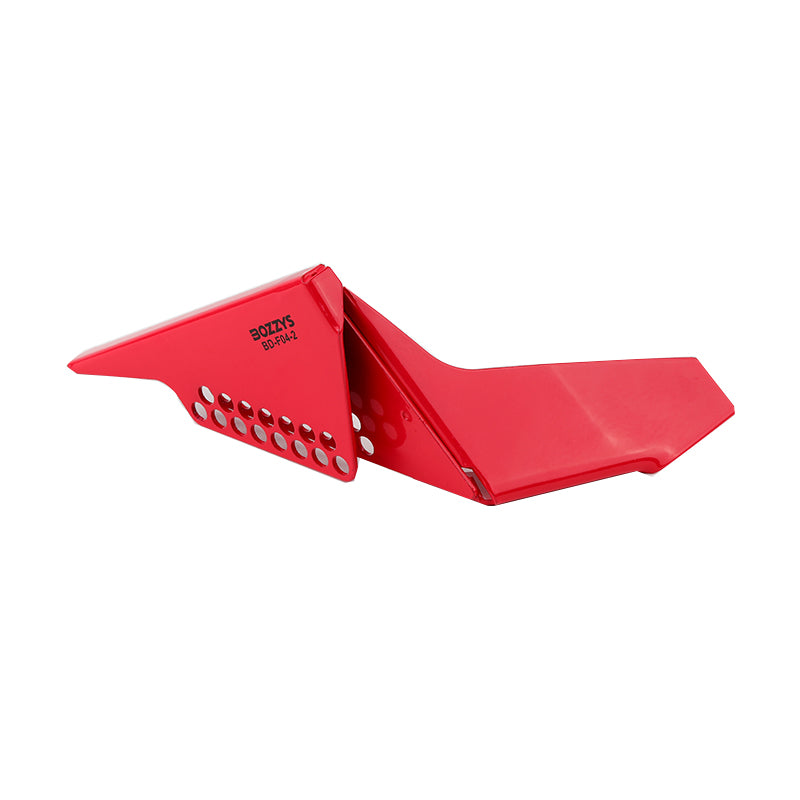

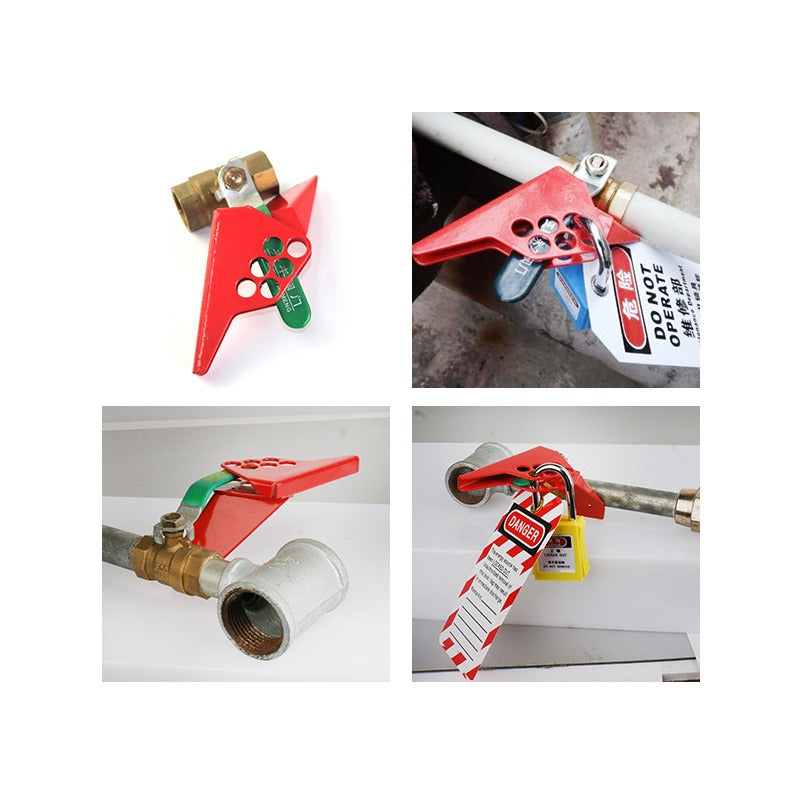

- Wedge the handle. The standard devices are a single-piece powder-coated steel wedge — more robust than a moulded body, and rated for higher temperatures. 6 – 25 mm with six padlock holes, 38 – 76 mm with seven.

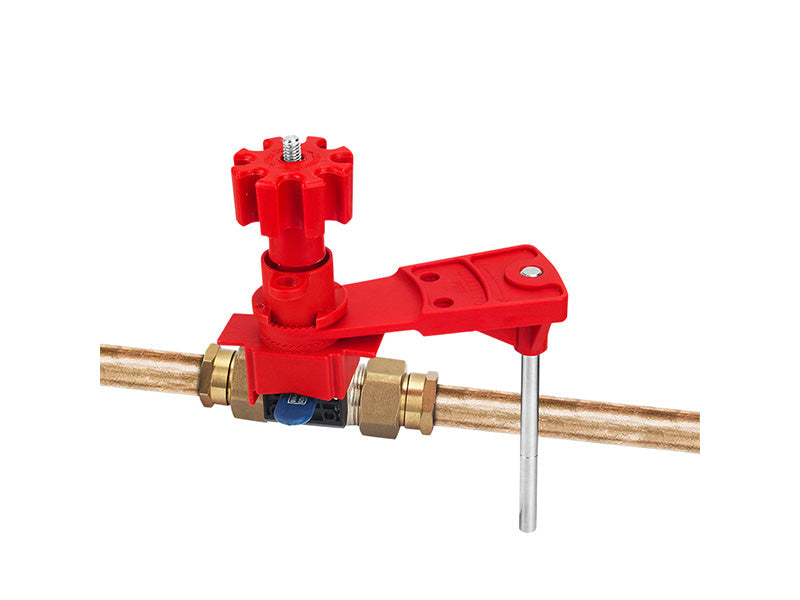

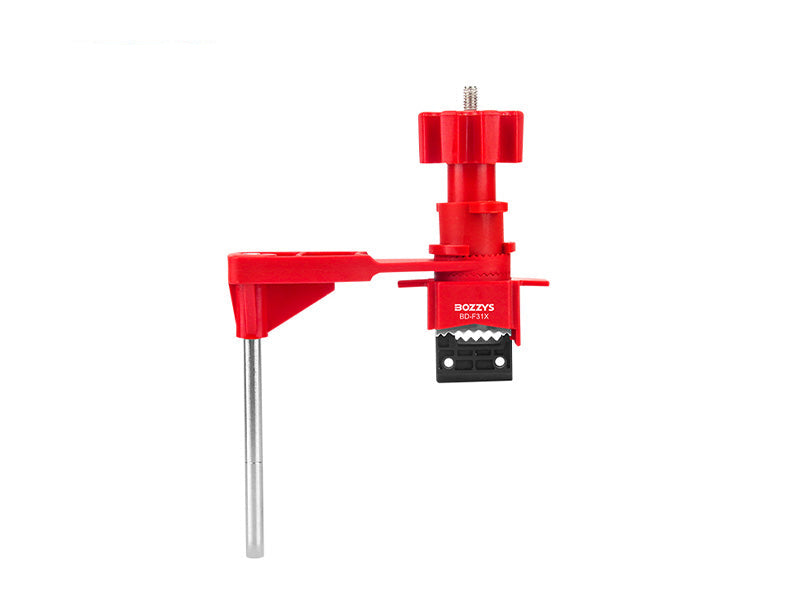

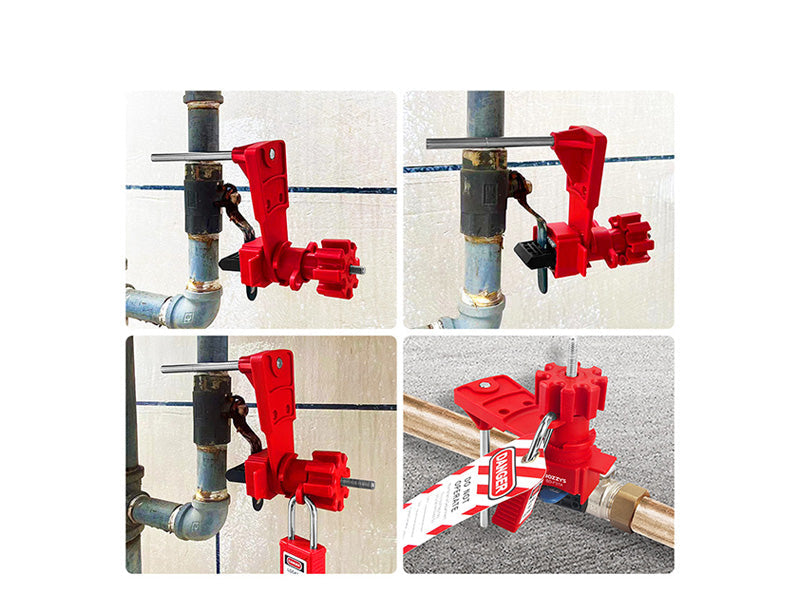

Where a lever simply will not take a cover, the universal swing arm pins it instead: a support rod sits against the valve body and a 200 mm arm traps the handle so it cannot be turned. For handles to 40 mm wide and 28 mm thick.
Butterfly valves — lever and latch together

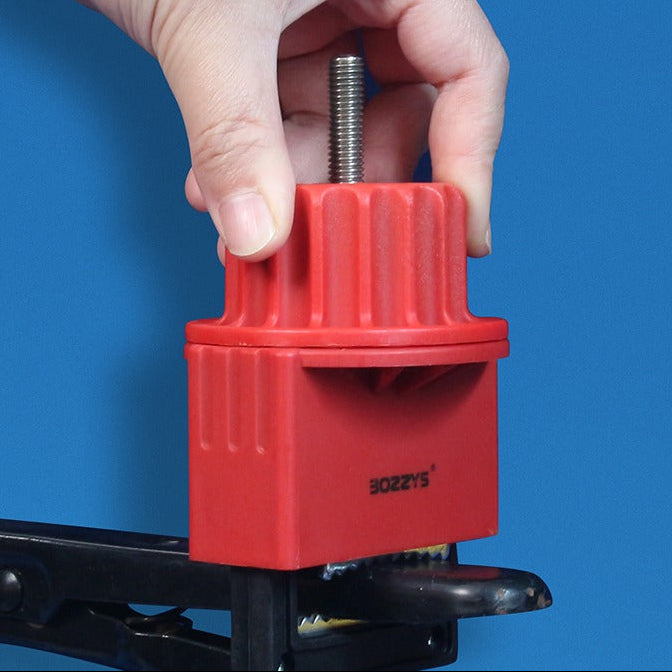

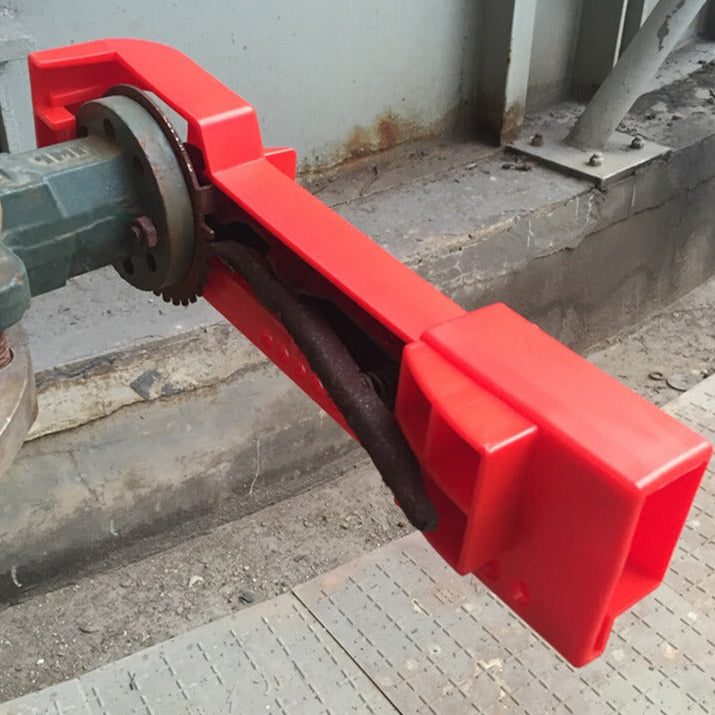

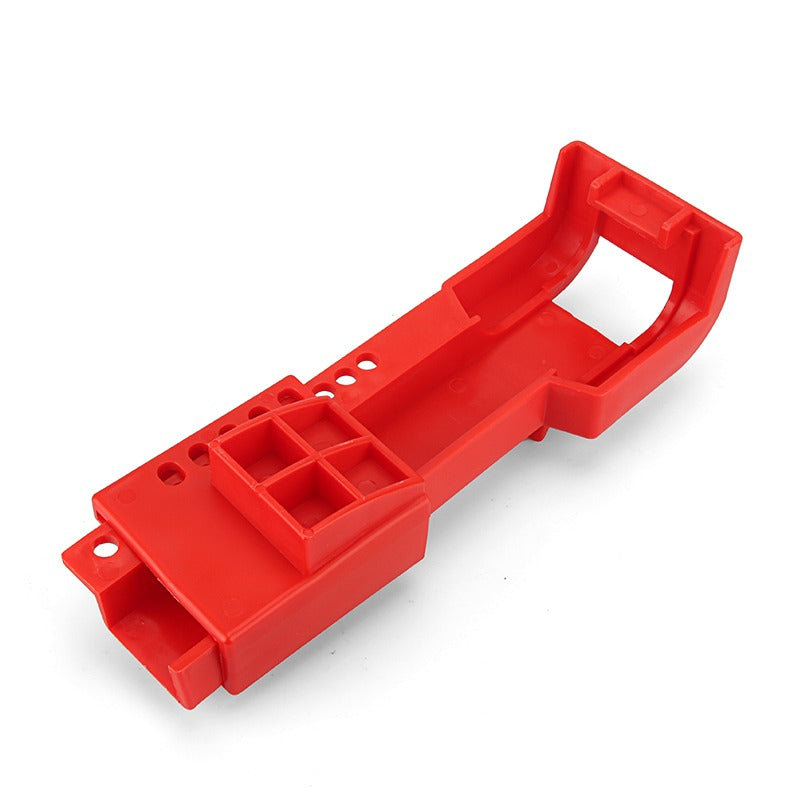

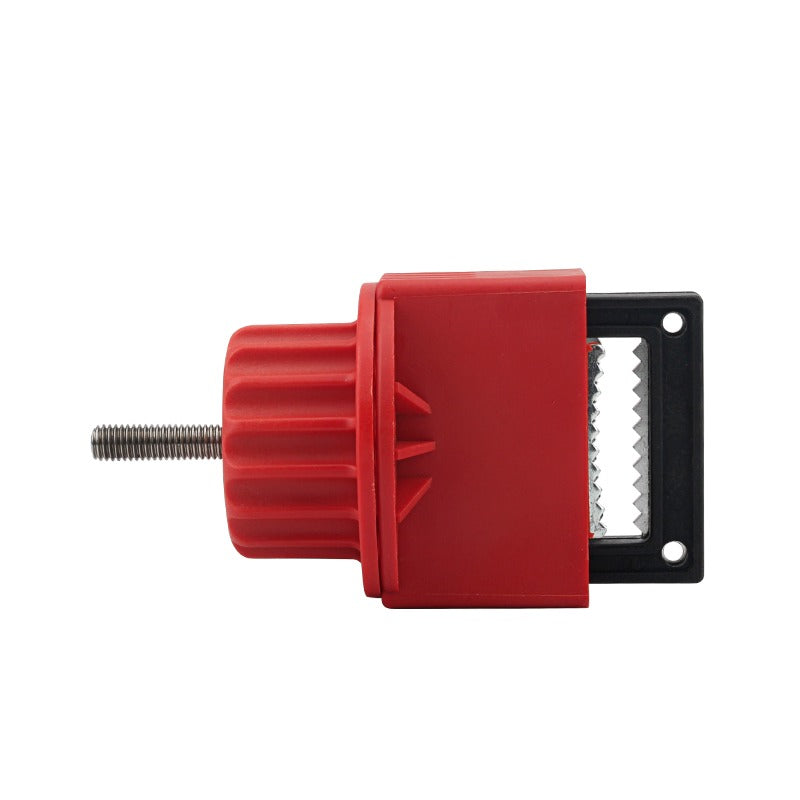

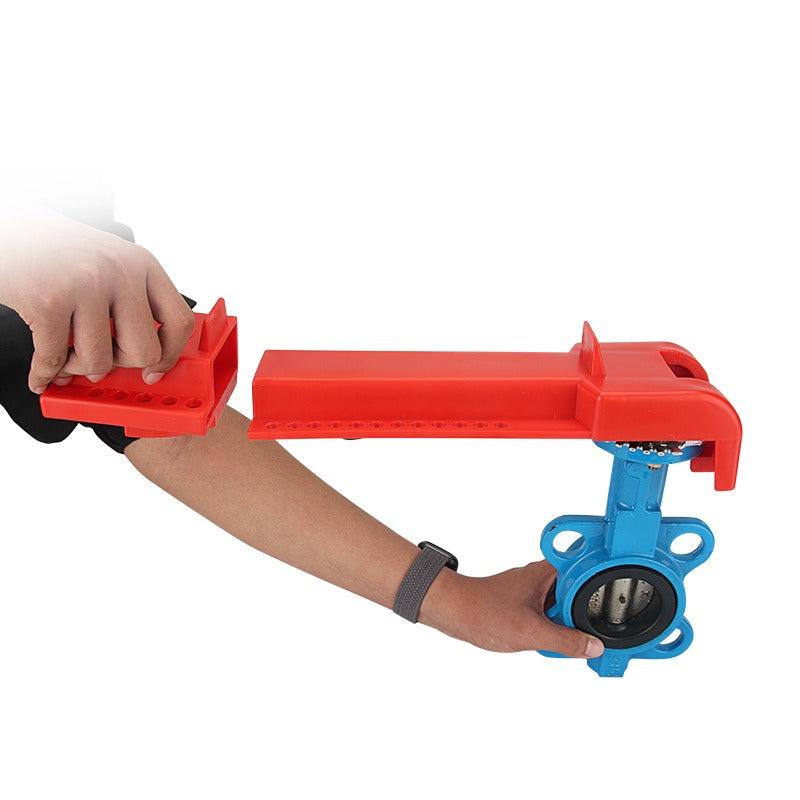

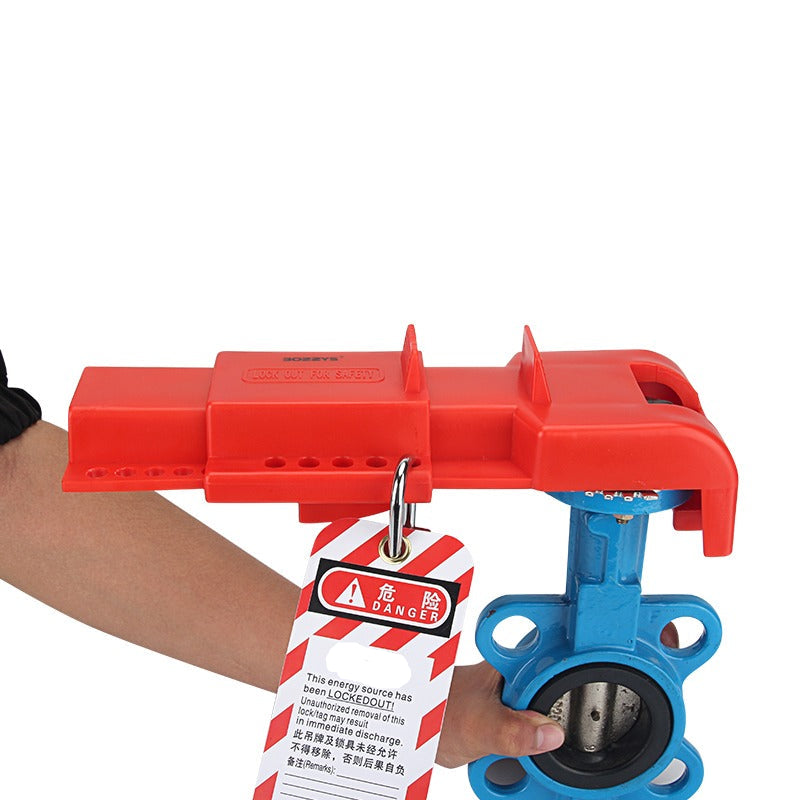

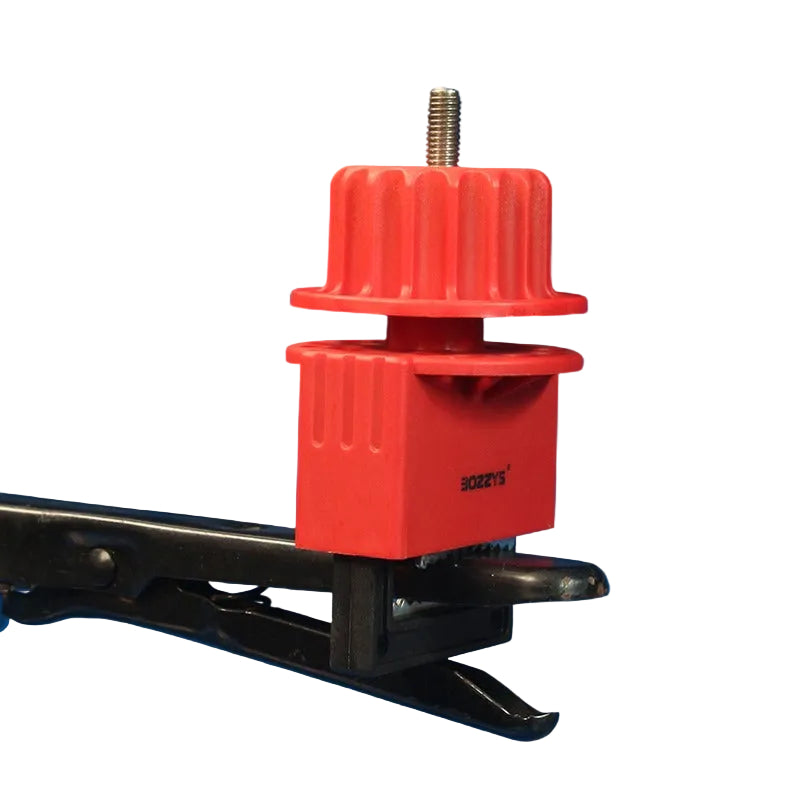

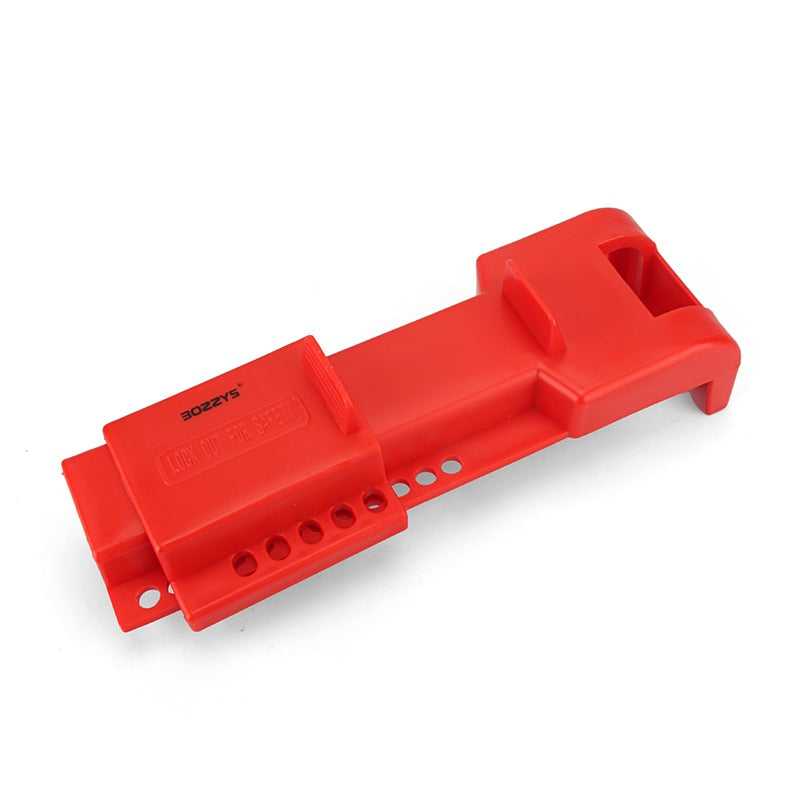

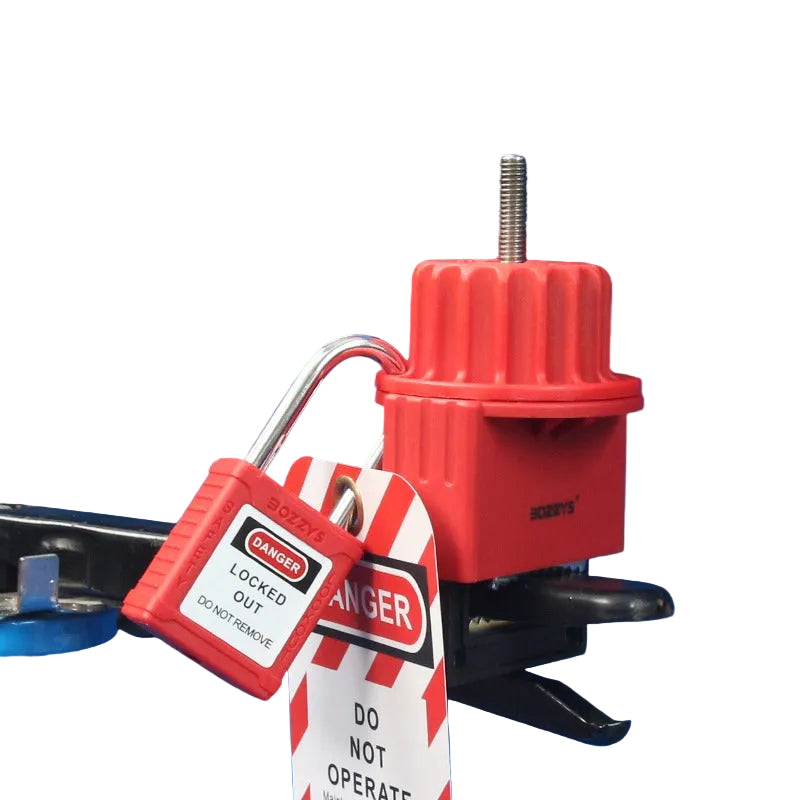

A butterfly valve is operated by a lever with a latch, and a lockout has to hold both or it achieves nothing. The fixed cover slips over handles 8 to 45 mm; the adjustable clamp tightens by knob onto handles up to 42 mm wide and 5 to 35 mm tall, which is what you want when the valves on site are not all the same.
What holds it shut
Every device here takes a padlock — see safety padlocks. For valves on a process line a steel shackle is fine; if the valve is actuated electrically, use a nylon shackle and lock the solenoid too, because turning the handwheel is not the only way that valve moves.
Each worker needs their own keyed different padlock. Where several people work one isolation, add a hasp so every one of them has a lock on it and the valve cannot be released until the last comes off.
