Pneumatic Lockouts
Compressed air and gas are easy to leave out of an isolation, because there is nothing to switch off and nothing visibly running. But a charged line still holds energy, and a cylinder anyone can turn back on is not isolated.
Three points to cover

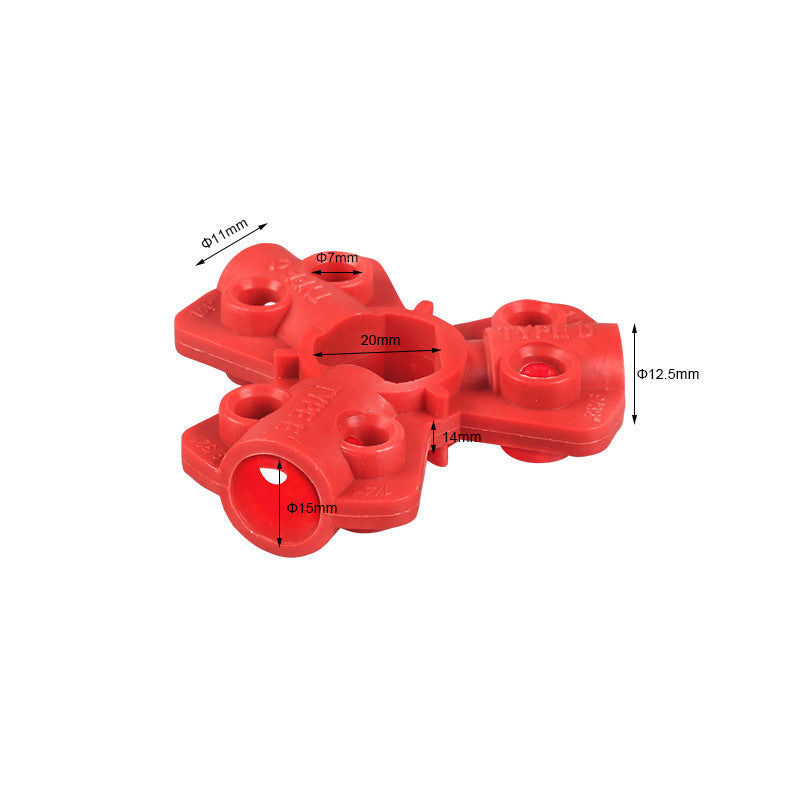

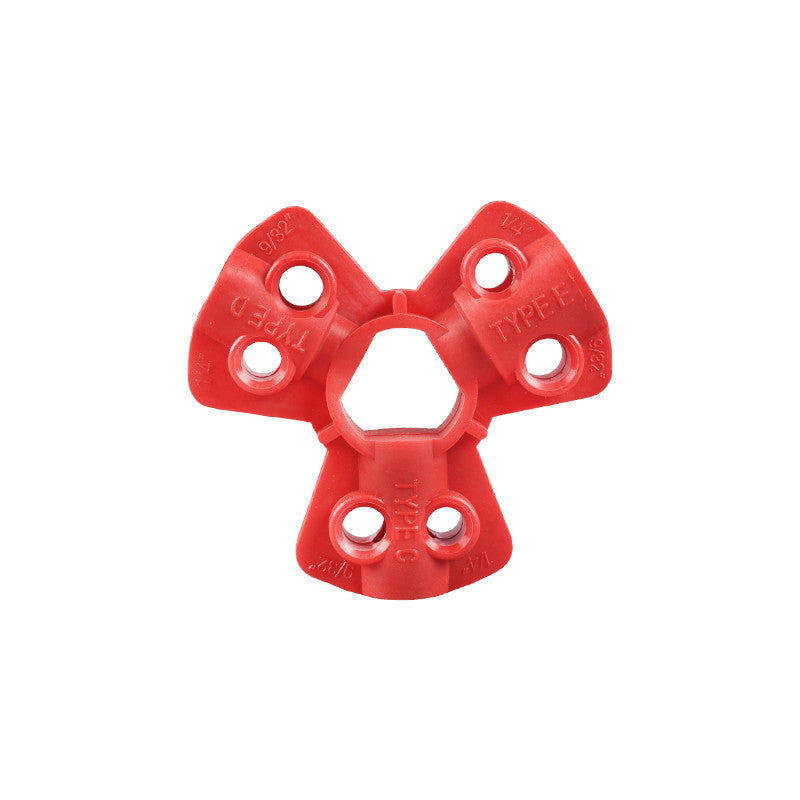

- Quick-disconnect lockout — goes over a disconnected air coupling so the line cannot be reconnected. Fits 6, 9 and 12 mm male fittings. Disconnecting the line is not an isolation until the coupling is covered.
- Air source lockout — for the valve on the air supply itself, 8 to 45 mm.
- Gas bottle lockout — clamps over the bottle valve and neck ring so it cannot be opened. Takes up to three padlocks, fits 89 mm necks. For welding gas, LPG, process gas and cylinder stores.
Bleed it down as well
Locking the supply does not empty the line. Where stored pressure could still move an actuator, bleed the system down after isolating and before anyone puts a hand near it — the lockout stops it being recharged, not the energy already in there.
Each worker needs their own keyed-different padlock. Isolating valves on the same job? See valve lockouts. In stock in New Zealand, dispatched from Auckland.
