Cable Lockouts
Some isolation points defeat an ordinary padlock — a gate, a lever, a valve handle too thick for any shackle, or four points that ought to be held by one device. A cable lockout threads a flexible stainless cable through them and takes up the slack.
Choose on how much slack you need to lose

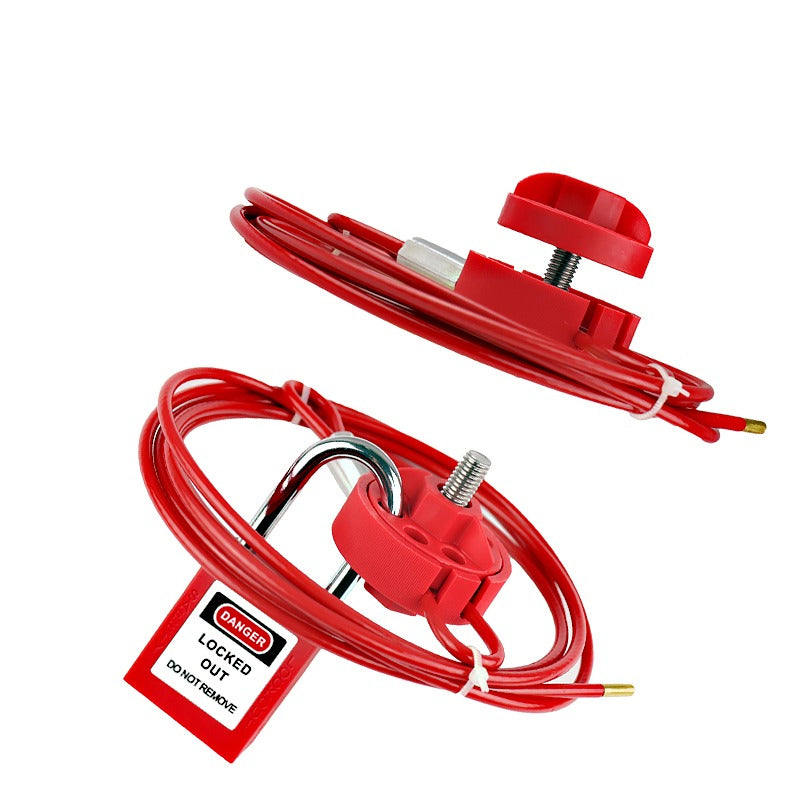

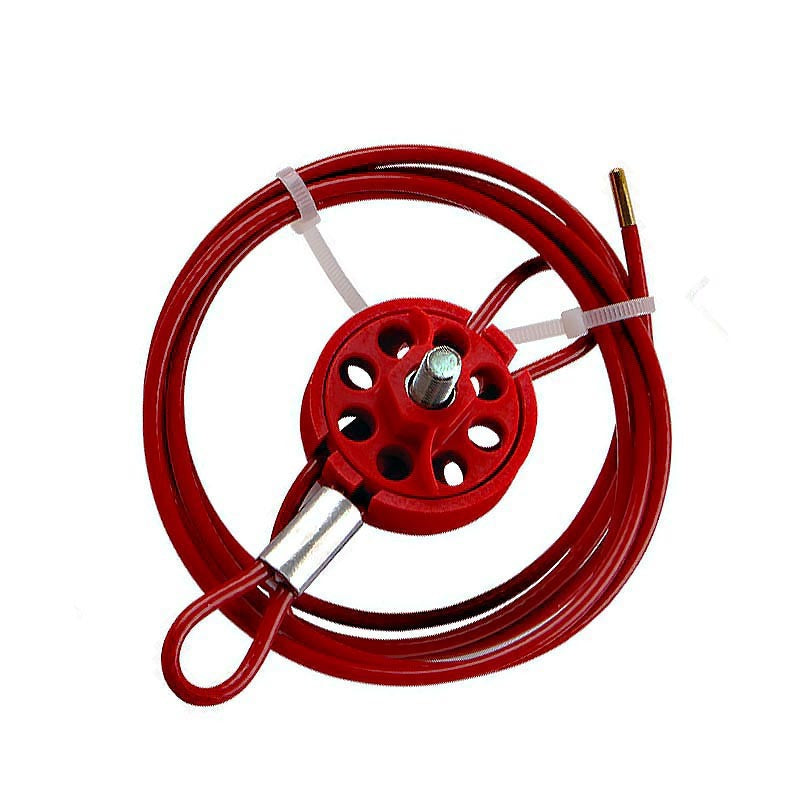

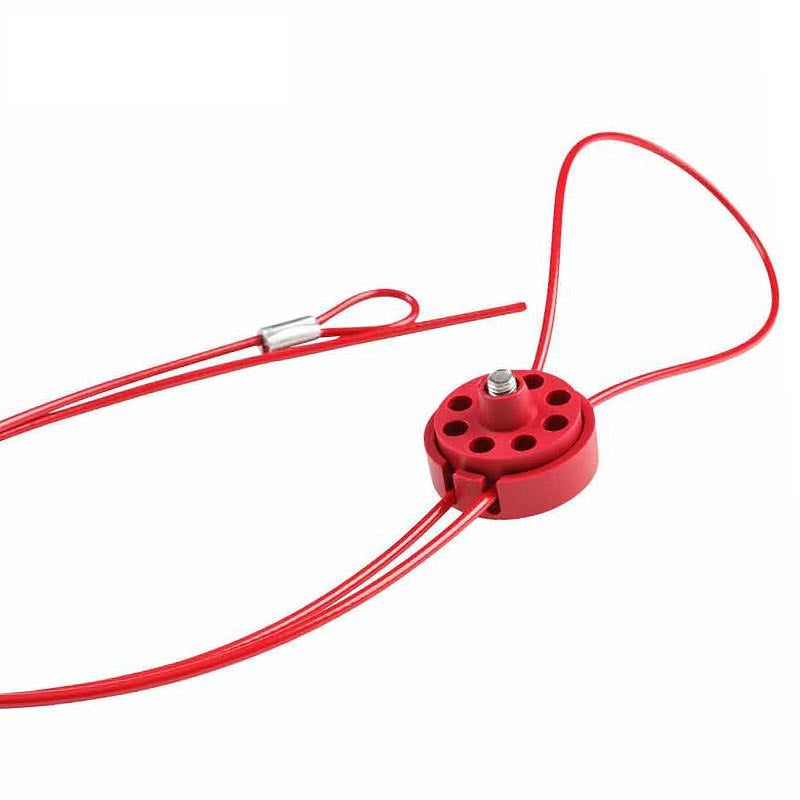

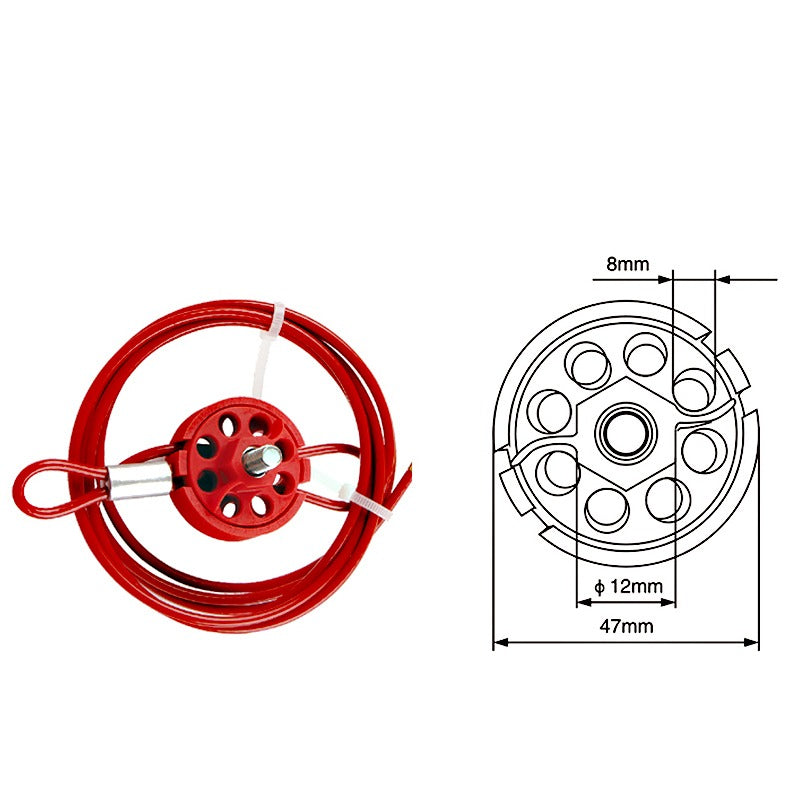

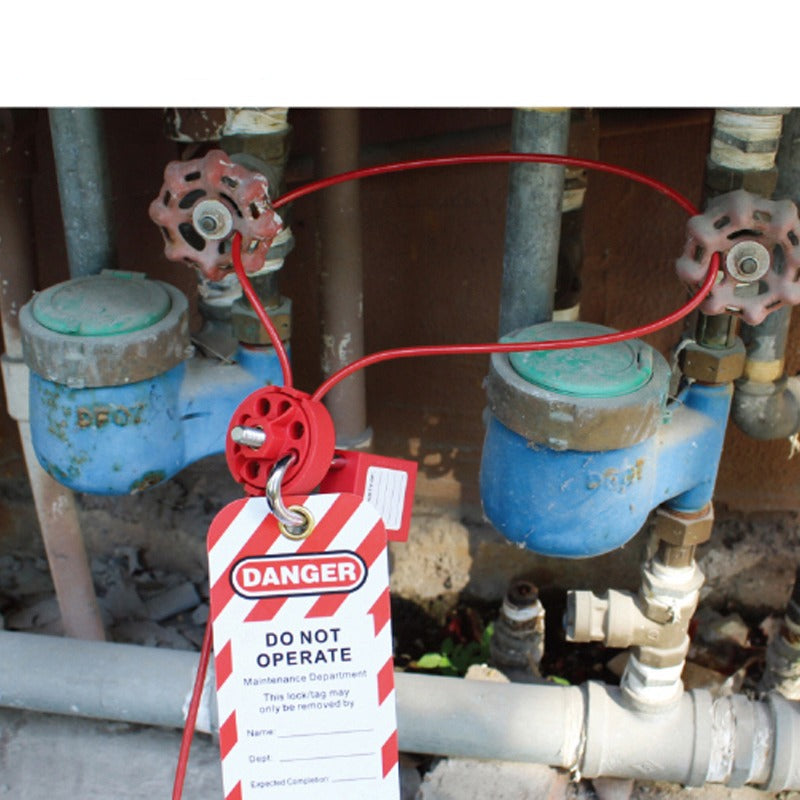

- Wheel type, 2 m cable — the cable retracts into the housing, so after threading you wind the slack in until there is no play left for the equipment to be operated. The right answer for multi-point isolations.

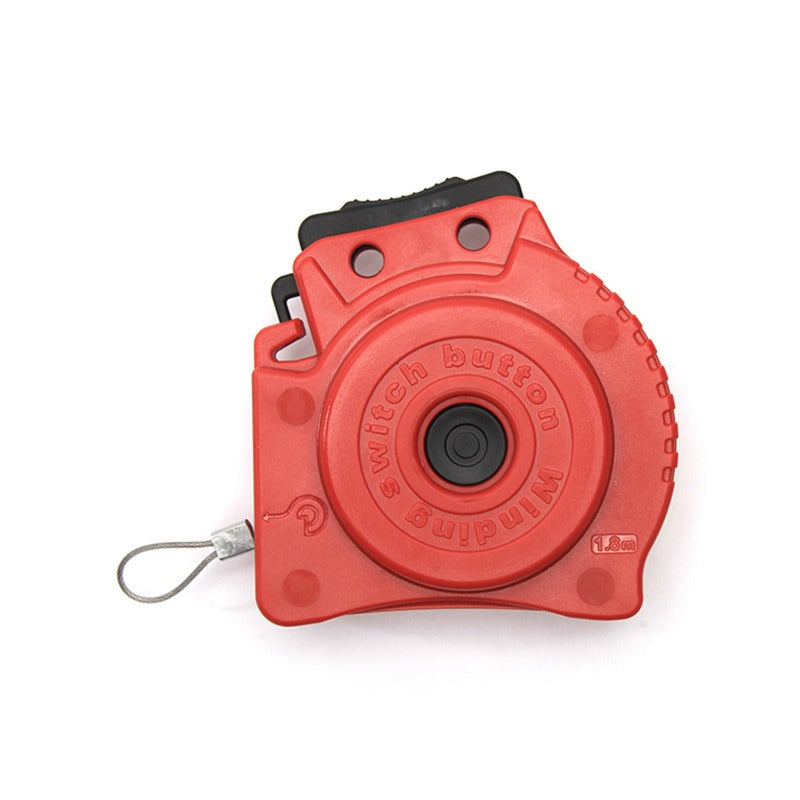

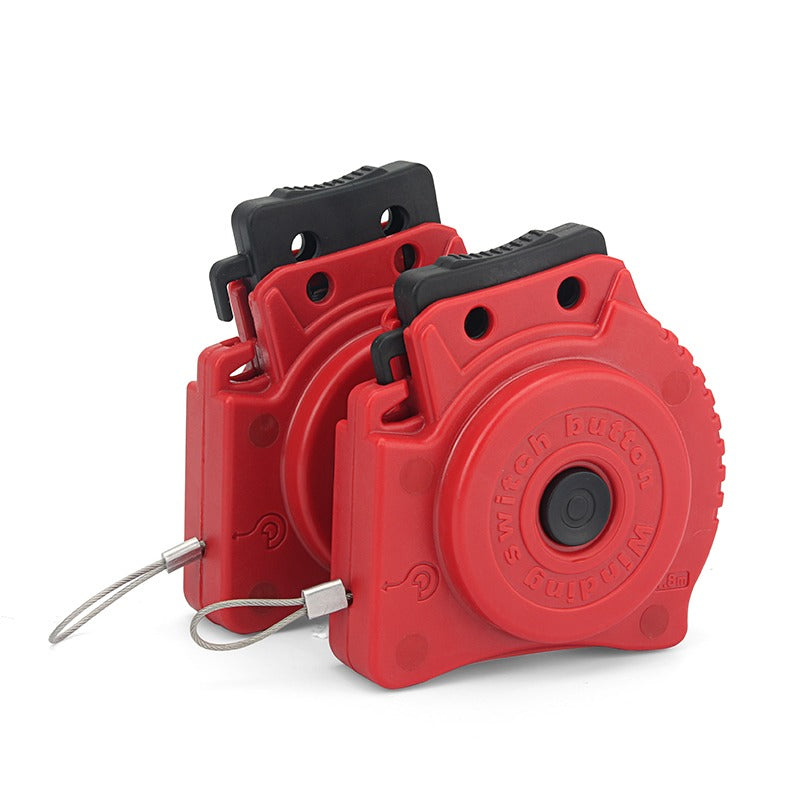

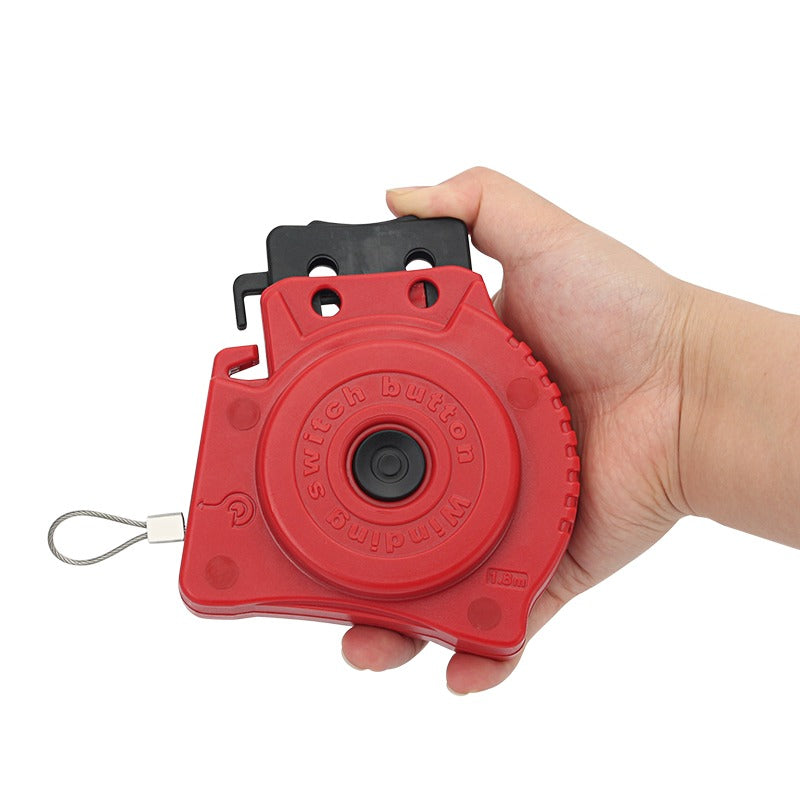

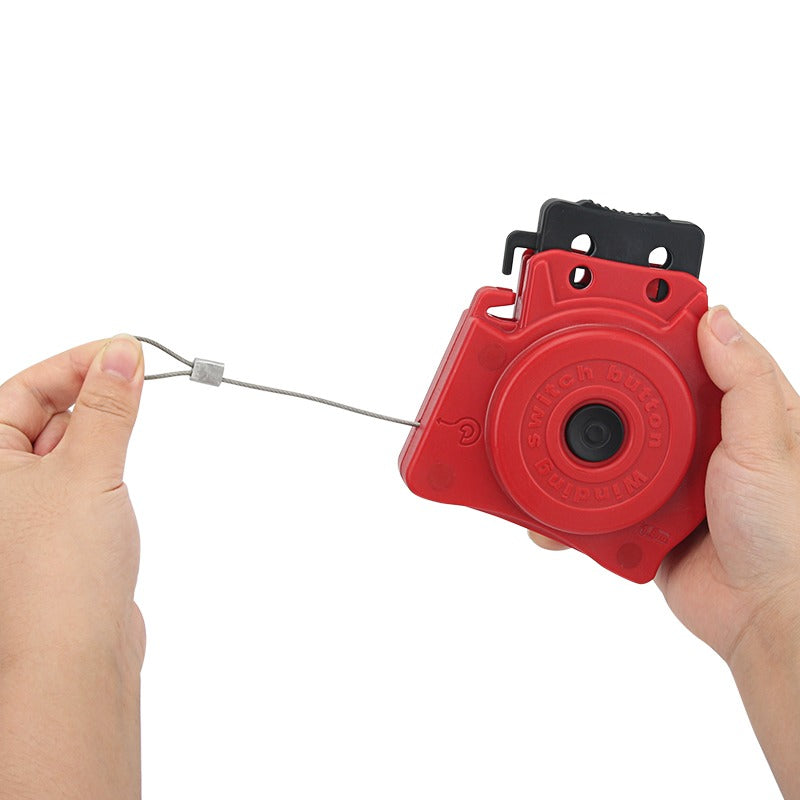

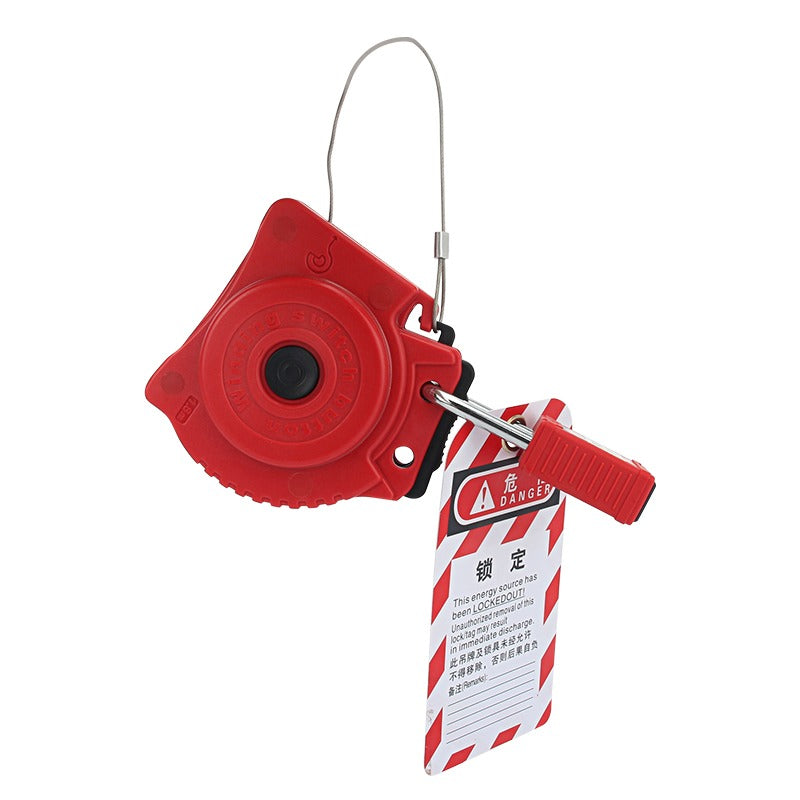

- 2.2 m, 1.5 mm cable — longer reach on a finer cable, for runs that need to cover more ground.
Or a padlock with the cable built in

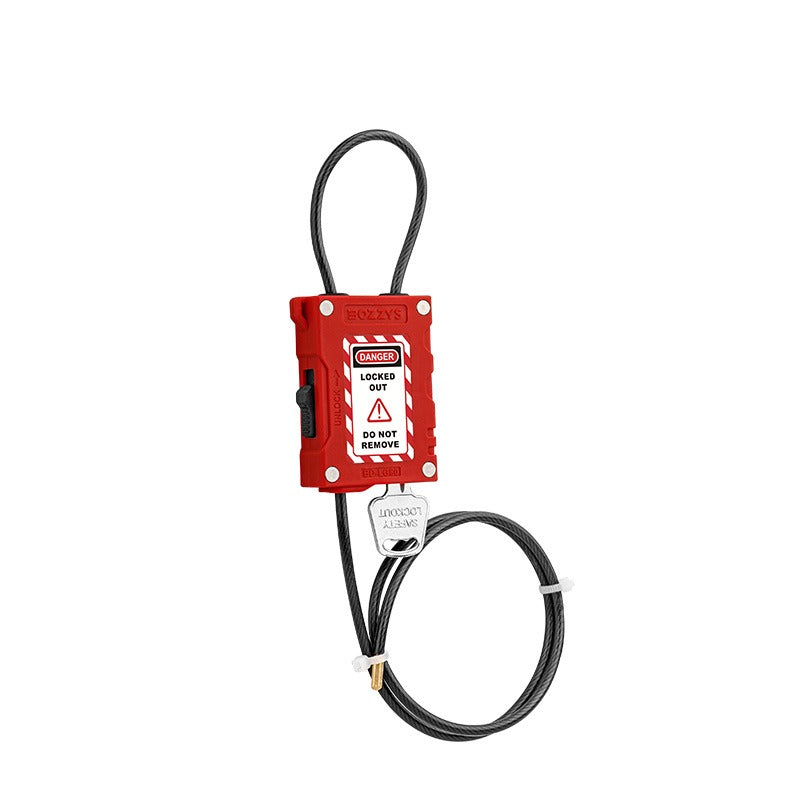

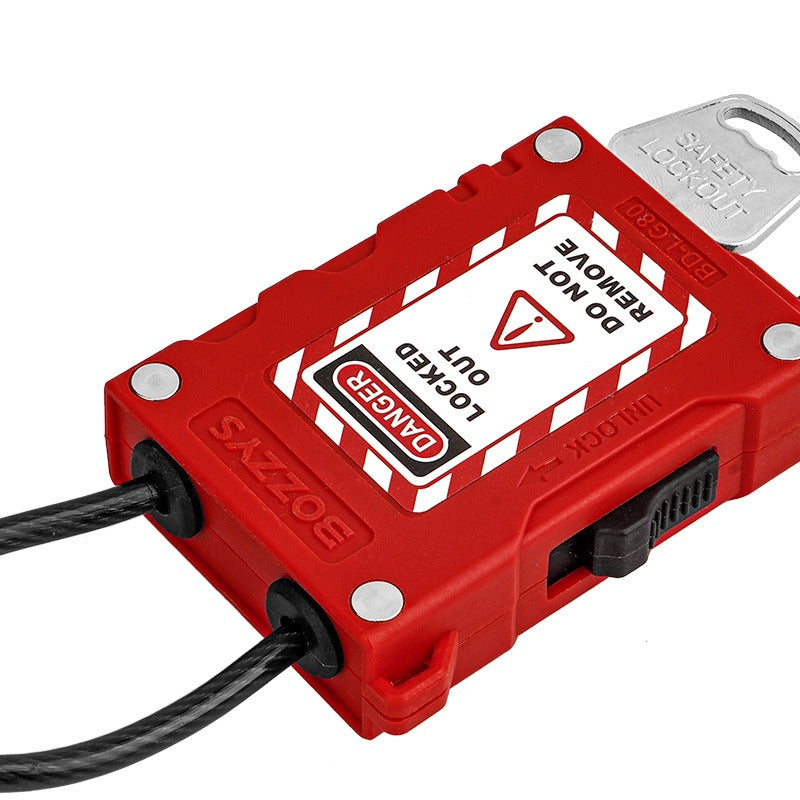

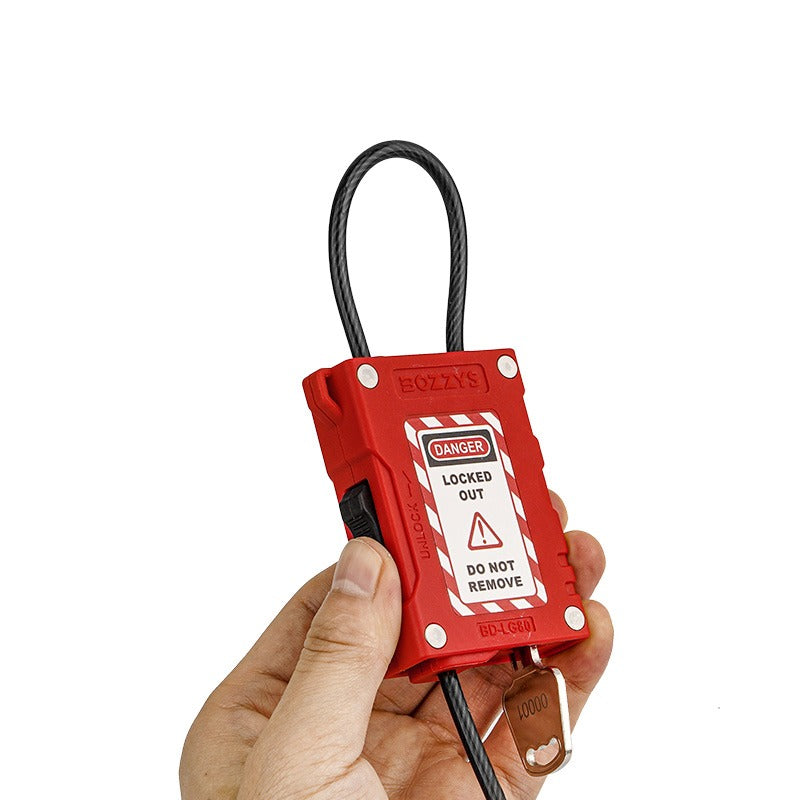

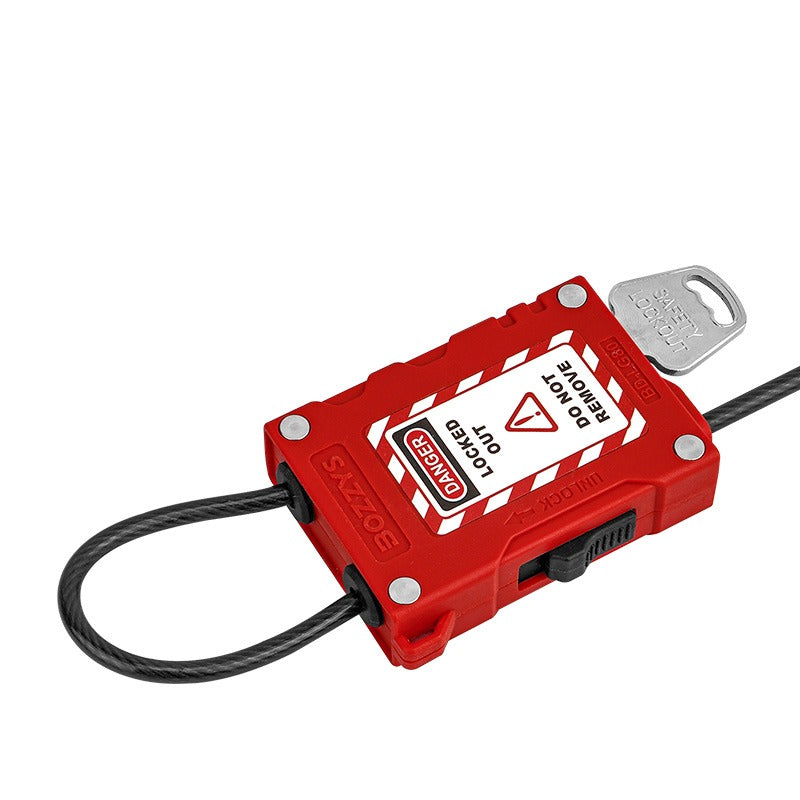

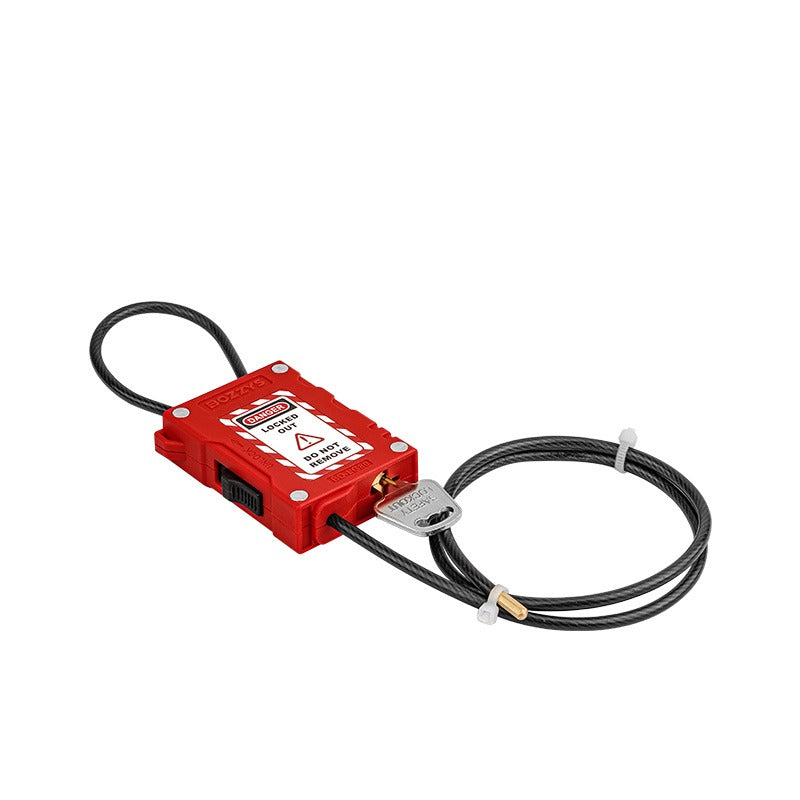

- Cable padlock, 0.8 m — one device instead of two, for a single awkward point. Keyed alike available.
- Cable safety padlock, 150 mm — a short cable in place of a rigid shackle, with an insulated key chamber and a non-conductive body.
One honest caution
A cable lockout is only as good as the tension in it. Left slack, a cable can be worked loose or lifted clear — so wind it tight, and where tamper resistance really matters, prefer a device that encloses the isolation point rather than loops around it.
Each worker needs their own keyed-different padlock. In stock in New Zealand, dispatched from Auckland.
